Hot Runner 24 32 48 Cavity Medical Injection Molding
| Place of Origin | China |
|---|---|
| Brand Name | ERBIWA |
| Certification | ISO9001:2015 & IATF16949:2018 |
| Model Number | EW0633 |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | Wooden package, Vacuum Package |
| Delivery Time | 4 ~ 8 weeks |
| Payment Terms | T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cavity Number | 24 / 32 / 48 Cavity | Steel | H13 |
|---|---|---|---|
| Dimension | 1070*1040*750mm | Gate System | Husky Needle Valve Gate |
| Plastic Material | PP | Color | Transparent / White |
| Tolerance | +/-0.02mm | ||
| High Light | 48 Cavity Medical Injection Molding,32 Cavity Medical Injection Molding,24 Cavity Hot Runner Mold |
||
Product Description

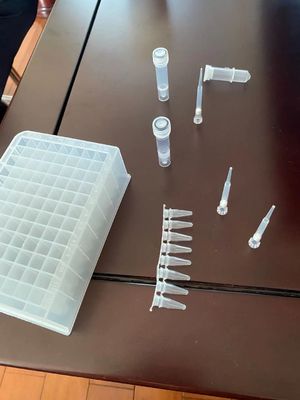

Multi Cavity Blood Collecting Tube and Cap Mould, Plastic Injection Molding
Special info:
| Item | Description |
| 1.Mould material | P20,718H,45#,STAVAX ESR S136,H13,2316,2083,2344 |
| 2.Hardness of steel | vacuum quenching ,nitride,HRC41-47, HRC46-50,HRC60 |
| 3.Inserts / Slider steel | H13 (DIN.1.2344),tempered with HRC46-50 |
| 4.Mould spare parts | H13 (Din 1.2344),tempered with HRC40-45,nitrited with HRC60-62 |
| 5.Mould base | LKM,HASCO |
| 6.Mould cavity | Single / Multi |
| 7.Runner system | Hot / Cold |
| 8.CAD centre for data formats | IGES,X_T,STP & DWG,etc |
| 9.Plastic material | ABS,PC,PE,PP,PS. |
| 10.Mould life | more than 1,000,000 shots |
| 11.Delivery time | 4-8 weeks |
| 12.Terms of payment | T/T, Paypal, Western Union and so on |
Product Range:
The maximum injection molded size is 2000mm*1400mm*1100mm.
Tolerance Range: ±0.05mm ~ ±0.2mm
Surface Treatment: Color can be custom made, please let us know the Pantone color code before production.
Quality Control:
Quality inspection will be performed strictly under ISO9001:2008 management standard.
Inspection tools are including: Projector, CMM, Chromatographic Instrument, Abrasion Tester.
The maximum injection molded size is 2000mm*1400mm*1100mm.
Tolerance Range: ±0.05mm ~ ±0.2mm
Surface Treatment: Color can be custom made, please let us know the Pantone color code before production.
Quality Control:
Quality inspection will be performed strictly under ISO9001:2008 management standard.
Inspection tools are including: Projector, CMM, Chromatographic Instrument, Abrasion Tester.

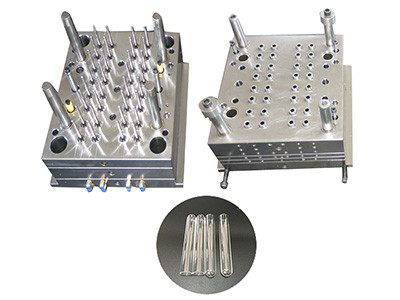

32Cavity Centrifuge tube Mould
name: 16 cavities plastic test tube mould
mould material :SKD61
cavity :32 cavities
Shaping Mode :Plastic Injection Mould
runner :hot runner
mould design :3D/2D
design days :1 Day
mould life: 1million shots
plastic material :PET
steel hardness :36-52HRC(according to different steel)
payment : 40% of deposit by L/C T/T 60% of balance by L/C T/T
delivery time:45-60 days
specification: depends on customers' demand
name: 16 cavities plastic test tube mould
mould material :SKD61
cavity :32 cavities
Shaping Mode :Plastic Injection Mould
runner :hot runner
mould design :3D/2D
design days :1 Day
mould life: 1million shots
plastic material :PET
steel hardness :36-52HRC(according to different steel)
payment : 40% of deposit by L/C T/T 60% of balance by L/C T/T
delivery time:45-60 days
specification: depends on customers' demand
Working Flow Chart
RFQ
Purchase Order
Mold Flow Analysis & DFM analysis
Mold design
Design validation
Tolerance analysis
Mold making(full dimension measurement)
Mold trial(free samples, FAI, CPK)
4 hours running before mold delivery
Main QC Procedure:
1. Review on the Mold Specification Sheet
2. Steel Hardness Inspection
3. Electrodes Inspection
4. Cavity and Core Dimension Inspection
5. Pre-assembly Inspection
6. Trial Repor and Plastis Parts Dimension Inspection
7. Final Mould Check (Before Shipment)
8. Package Inspection
Delivery and Package:
Wooden Package for Mould
Carton Package for Plastic Parts
Plastic Samples Deliveried by DHL, FEDEX, TNT
Mould Deliveried by Plain, Ship or Train
Why Choose Us?
– We can Provide:
1. Professional and experienced workers
2. Advanced technology and equipment
2. Competitive price & OEM design
3. Design drawings for free
4. Injection mold production more than 15 years of experience
7. We use eco-friendly material
8. A very strict quality controlling system
9. Delivery on time
– And During Manufacturing We Will:
1. Update production process by weekly report with pictures
2. Send video and photos to customers during mould test
3. Confirm packaging with customer before mould delivery
4. One year warranty, all maintenance are free of charge during warranty
FAQ For Customers
Q1. When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. Or please call us or send us email so that we will make the quotation soonest.
Q2. How long is the lead-time for mold?
A: It all depends on the mold’s size and complexity. Normally, the lead time is 25-35days. If the molds are very simple and with small size, we can work out within 15 days.
Q3. I have no 3D drawing, how should I start the new project?
A: You can supply us a sample, and we will help to finish the 3D drawing design.
Q4. Before shipment, how to make sure the products quality?
A: We will supply you a video for production process detail include process report, products size, structure and surface detail, packing detail and so on.
