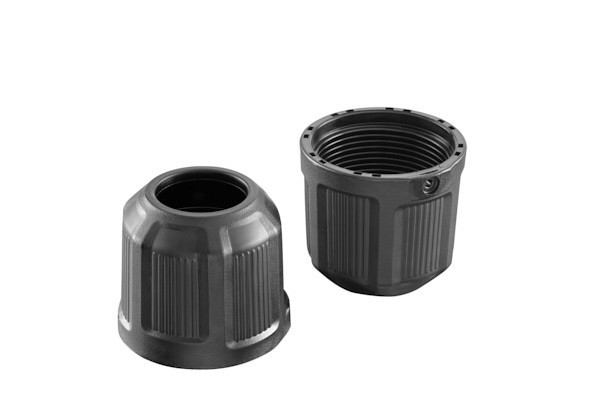

100k Shot Thread Unscrewing Mold With 2 Cavity

  • 100k Shot Thread Unscrewing Mold With 2 Cavity
  • 100k Shot Thread Unscrewing Mold With 2 Cavity
Place of Origin Guangdong, China
Brand Name ERBIWA Mould
Certification ISO 9001: 2015 IATF 16949: 2016
Model Number EW0430
Minimum Order Quantity 1 set for mold
Price Negotiation
Packaging Details Standard export package
Delivery Time 30-60 days
Payment Terms TT, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PA6 Shaping Mold Plastic Injection Mould
Civity 1*2 Runner Hot Runner/Cold Runner
Delivery Terms FOB Cavity Finish SPI B2 400 Paper
Lead Time 5 Weeks Market USA
Slider 2 Steel 1.2344(HRC48-52)
High Light

Thread Unscrewing Mold

,

2 Cavity Unscrewing Mold

,

100k Shot Unscrewing Mould
Leave a Message
Product Description

 PA6 Hardened Steel Plastic Injection Thread Unscrewing Mold with 2 Cavity and High Quality


There are as many as 12 teeth on the thread, so we adopt hydraulic motor not hydraulic cylinder to release thread that avoid big size mold. The original part only includes 4 hooks to fix the part during unscrewing. Due to the strong holding force of the screw thread, we suggest to Cut the hooks to eight ones to avoid part rotating with thread core. After modifying to 8 hooks, the mould trial is good.





Project Procedure

1: Purchasing Order- When we receive order and will get the order in our production system.

2: Pre-design meeting- We will assign a project engineer to follow your project and have the pre-design meeting together with other department.

3: DFM / Moldflow- The project engineer will offer DFM and Moldflow if necessary to customer for checking and approval.

4: 2D / 3D- The project engineer will send the mold 2D and 3D layout to customer for approval.

5: Ordering steel- Once get mold drawing approval and deposit payment we will order steel.

6: Machining- The project engineer will provide the timing schedule for reference and every Monday we will send the progress and live machining pictures.

7: Tool assembly-Fitting tool

8: Mould Trial- We will send the sample report, injection parameter to customer.

9: Part Inspection- We will send dimension inspection report and SGS Lab certificate for simple physical test.

10: Tool Correction-Improve the tool according to customer’s feedback.

11: Tool Checking and Packing- We will check the mold item one by one based on our checking list.

12: Tool delivery- We will offer the mold package details and photos, all drawing and components will be inside together with the mold delivery.

13: After-sales Services- We will follow with customer the mold running process when the mold in customer’s shop.







Life Cycle (shot) Mould Base A&B Plates Cavity & Core Slider& Lifter Hot Runner Brand & Type Gating Type Injection machine (Ton) Mould Type
100,000 LKM 1.1730 1.2344 HRC48-52 1.2344 Cold Runner Sub Gate 200T 2 Plate





Our Services:

1. Strict quality control step by step.
2. Promote quotation and fast delivery.
3. Company’s own shipping port storage warehouse and pre- shipment inspection by our
professional engineer.
4. Comopetitive prices based on same quality and service.
5. All inquiry will be replied within one workding day.
6. OEM orders and process with customer’s sample and technical drawings.
7. 24 hours online service.
8. Well trained and experienced staffs will answer customer's question in flent English.
9. We have an team with rich experience of project manager, designers engineers and technicians.
10. We will give best mould solution based on customer's reuqest.



100k Shot Thread Unscrewing Mold With 2 Cavity 0100k Shot Thread Unscrewing Mold With 2 Cavity 1

The displayed pictures is only for your reference,we can make various kinds of auto plastic injection mold according to your requirements. Contact Erbiwa today and begin enjoying the benefits of high quality and low price products.
