Multi Cavity Submarine Gate Injection Molding With Husky Hot Runner
| Place of Origin | China |
|---|---|
| Brand Name | ERBIWA |
| Certification | ISO9001:2015 & IATF16949:2018 |
| Model Number | EW2000912R |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | Wooden package, Vacuum Package |
| Delivery Time | 4 ~ 8 weeks |
| Payment Terms | T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 48 Cavity Injection Mold | Steel | H13 |
|---|---|---|---|
| Dimension | 1070*1040*750mm | Gate System | Husky Valve Gate |
| Plastic Material | PP | Color | Natural/ White |
| Tolerance | +/-0.02mm | ||
| High Light | Multi Cavity Submarine Gate Injection Molding,Hot Runner Submarine Gate Injection Molding,48 Cavity Plastic Injection Molding |
||
Product Description

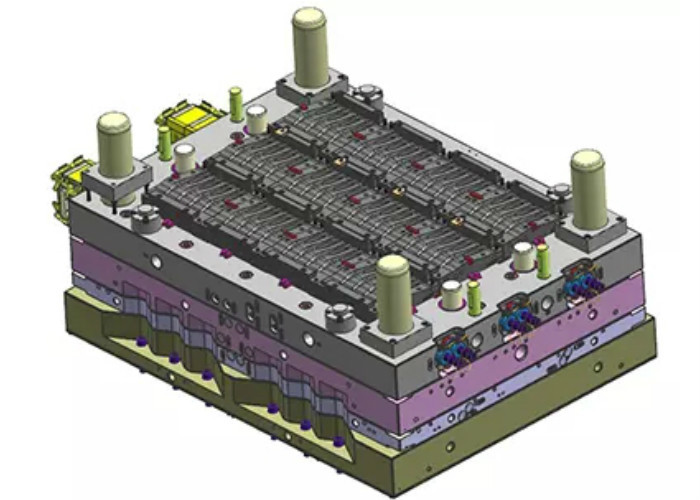

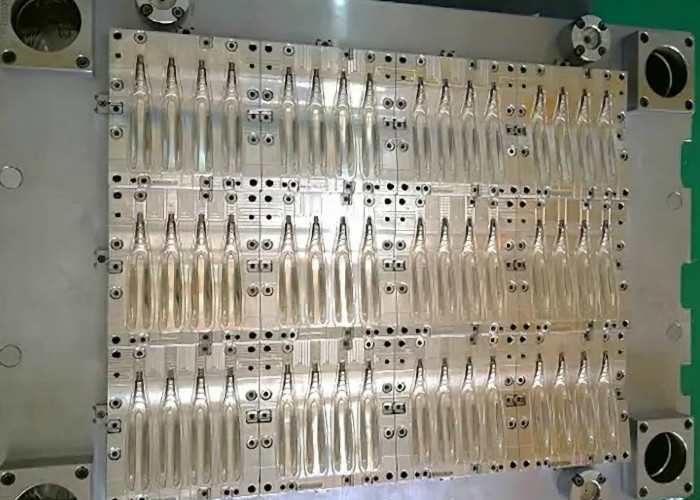

Multi Cavity Mould Injection Molding Submarine Gate Injection Molding With Husky Hot Runner
Product Description:
|
Product Name
|
Precision mold 48 cavities tool die production injection plastic mould
|
|||
|
Mold Shaping |
Plastic Injection Molding
|
|||
|
Mold Base
|
LKM, HASCO, DME, etc.
|
|||
|
Mold Steel
|
ASSAB8418, S136, 718H, 738H, etc.
|
|||
|
Mold Cavity
|
48 Cavities
|
|||
|
Tolerance
|
+/0.002mm
|
|||
|
Finish
|
Polish, Silk Screen, Painting, etc.
|
|||
|
Sprue Gate
|
Hot runner, Cold runner, Tunnel gate, Pin point gate, sub-gate, etc.
|
|||
|
Drawing Format
|
STEP/STP/IGS/CAD/PDF/DWG/STL,etc.
|
|||
|
Product Resin
|
PC, ABS, PP, POM, PBT, NYLON, PMMA, TPE, TPU, SAN, etc.
|
|||
|
Mold Life
|
100K - 1.5M
|
|||
|
T0 Lead Time
|
4 - 7 weeks
|
|||
|
Transportation
|
By sea, by air, by land or train as your instruction
|
|||
|
Package
|
YF mold standard package based on different transportation way or as your instruction
|
|||
|
Ship Condition
|
Ex work, FOB or to be negotiated
|
|||
|
Certificate
|
ISO 9001:2015
|
|||
|
OEM/ODM
|
YES
|
|||
Working Flow Chart
RFQ
Purchase Order
Mold Flow Analysis & DFM analysis
Mold design
Design validation
Tolerance analysis
Mold making(full dimension measurement)
Mold trial(free samples, FAI, CPK)
4 hours running before mold delivery
Main QC Procedure:
1. Review on the Mold Specification Sheet
2. Steel Hardness Inspection
3. Electrodes Inspection
4. Cavity and Core Dimension Inspection
5. Pre-assembly Inspection
6. Trial Repor and Plastis Parts Dimension Inspection
7. Final Mould Check (Before Shipment)
8. Package Inspection
Delivery and Package:
Wooden Package for Mould
Carton Package for Plastic Parts
Plastic Samples Deliveried by DHL, FEDEX, TNT
Mould Deliveried by Plain, Ship or Train
