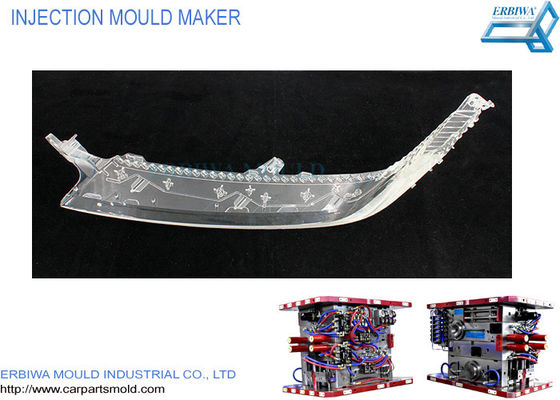

Auto Transparent Guide Light Car Parts Mold , Injection Molding Auto Parts
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Attractive And Durable | Size Tolerance | +/-0.005mm |
---|---|---|---|
Part Material | PC | Fitness | 100% Match |
Quality Control | Inspected And Reconfirmed Before Shipment | Mould Material | According To Customer's Requirements |
Use For | Car Lighting System | Mould Base Standard | Hasco, Dme, Meusburger, Futaba, Lkm, Etc |
Mould Price | Cost-Effective And Competitive | After-Sales Service | German And US Subsidiary Support |
High Light | injection molding automotive parts,auto injection mold |
Auto Transparent Guide Light Car Parts Mold , Injection Molding Auto Parts
Part 1: Mould Description
Company | ERBIWA MOULD INDUSTRIAL Co., Ltd |
Business Type | Manufacturing |
Products Name | Chinese high quality customized plastic injection molding for Car Plastic Secondary Instrument Panel/Dashboard |
Place of Origin | Dongguan, China |
Export Country | Germany, Japan, North America, Australian, Canada, France, Italy, etc |
Quality System | ISO9001: 2015; IATF16949: 2016 |
Mould Life | According to client's requirements |
Mould base Standard | HASCO, DME, LKM, Meusburger, FUTABA, etc |
Core & Cavity Material | 718H, P20, NAK80, S316H, SKD61, 1.2311, 1.2343, 1.2343ESV, etc |
Products Material | PP, PA6, PLA, ABS, PE, PC, POM, PVC, PET, PS, TPE/TPR, etc |
Design Software | UG, PROE, Auto CAD, Solidworks, Catia V5, Visi, etc |
Runner Type | Hot runner or cold runner |
Gate Type | Side gate, Sub gate, Pin point Gate... |
Surface Treatment |
Polish, High gloss Polish, Texture, Silk-screen printing, Brushed, Mirror, Anodizing, Electroplating, etc |
Equipment | CNC, EDM, Milling, Grinding, Wire Cut, Inspection, Plastic injection machine |
Package | Wooden box for mould, carton for plastic products |
Lead Time | 40-60 days for T1 |
OEM/ODM Service | Available |
Part 2: Equipment List
Equipment type | Qty(Set) | Model | Brand |
Origin |
Precision(μ) | Date of use (Year) | (x*y*z)mm |
Milling | 7 | 8SS | Taizheng | Taiwan | 0.01mm | 2014 | 600*320*330 |
4 | SHCM-97A | Gentiger | Taiwan | 0.01mm | 2016 | 650*350*360 | |
Grinding | 10 | SGM450 | Shuguang | Taiwan | 0.003mm | 2016 | 400*150*250 |
8 | JL-614 | Joen Lih | Taiwan | 0.003mm | 2012 | 400*150*250 | |
Drilling | 3 | Z305*16/1 | ZOJE | China | 1mm | 2016 | z=850 |
3 | M3-M16 | Xianwei | China | 1mm | 2016 | z=500 | |
EDM | 5 | cnc-edm-he130 | HSPK | China | 0.01mm | 2016 | 1300*600*400 |
8 | cnc-edm-he100 | HSPK | China | 0.01mm | 2016 | 1000*500*400 | |
6 | Sodick AM30L | Sodick | Japan | 0.005mm | 2014 | 300*200*200 | |
3 | TOPEDM MP50 | TOPEDM | Taiwan | 0.005mm | 2012 | 400*280*250 | |
4 | ARD M30 | ARD | Taiwan | 0.005mm | 2012 | 250*200*200 | |
Wire Cut |
2 | AQ360LS | Sodick | Japan | 0.005mm | 2010 | 360*250*220 |
3 | AQ550LS | Sodick | Japan | 0.005mm | 2010 | 550*350*320 | |
2 | Charmilles 240 | Charmilles | Switzerland | 0.003mm | 2010 | 250*200*220 | |
1 | CHMER | CHMER | Taiwan | 0.005mm | 2010 | 1300*600*400 | |
1 | K7 | K7 | China | 0.01mm | 2010 | 1000*500*400 | |
CNC | 5 | α-d14mia | FANUC | Japan | 0.005mm | 2016 | 500*400*330 |
3 | MXV1020 | YCM | Taiwan | 0.005mm | 2016 | 1020*520*540 | |
1 | MV66A | YCM | Taiwan | 0.005mm | 2016 | 660*520*540 | |
2 | FV85A | YCM | Taiwan | 0.005mm | 2016 | 850*620*630 | |
1 | FV125A | YCM | Taiwan | 0.005mm | 2016 | 1270*520*540 | |
1 | TV146B | YCM | Taiwan | 0.005mm | 2014 | 1400*620*630 | |
2 | Hartford-2150H | Hartford | Taiwan | 0.01mm | 2014 | 2000*1500*780 | |
1 | Hartford-1000 | Hartford | Taiwan | 0.01mm | 2014 | 1000*600*630 | |
2 | TAKUMI H16 | TAKUMI | USA | 0.01mm | 2017 | 1600*1300*700 | |
1 | MB-56VA | OKUMA | Japan | 0.005mm | 2014 | 1000*560*550 | |
1 | 5 Axis AV-2516X/2516HX | Quick Jet | Taiwan | 0.004mm | 2017 | 2500*1600*800 | |
1 | 3 Axis AV-1612 | Quick Jet | Taiwan | 0.002mm | 2017 | 1600*1200*700 |
Inspection
|
2 | Inspector | Hexagon | Sweden | 0.002mm | 2016 | 2000*1000*700 |
6 | Microscope | Micat | Taiwan | 0.002mm | 2016 | 400*300*150 | |
1 | Mitutoyo C7106 | Mitutoyo | Japan | 0.003mm | 2014 | 1500*800*500 | |
2 | MF-A1720 | Mitutoyo | Japan | 0.003mm | 2014 | 400*300*150 | |
1 | Micro-Hite M600 | TESA | Switzerland | 0.005mm | 2014 | 0~600mm | |
1 | GTR-4 LS | OSAKA | Japan | 0.005mm | 2014 | Gear Tester | |
1 | MFC1001 | NIKON | Japan | 0.003mm | 2015 | Z=100 | |
Injection Mold Machine | 4 | Haitian 100 Ton | Haitian | China | 2012 | 100T | |
1 | Haitian 180 Ton | Haitian | China | 2012 | 180T | ||
1 | Haitian 200 Ton | Haitian | China | 2012 | 200T | ||
4 | Taichung 120 Ton | Taichung | Taiwan | 2014 | 130T | ||
1 | Taichung 200 Ton | Taichung | Taiwan | 2014 | 200T | ||
1 | ARBURG 420C | ARBURG | Germany | 2016 | 110T |
Part 3: Why Choose Us?
– We can Provide:
1. Professional and experienced workers
2. Advanced technology and equipment
2. Competitive price & OEM design
3. Design drawings for free
4. Injection mold production more than 15 years of experience
7. We use eco-friendly material
8. A very strict quality controlling system
9. Delivery on time
– And During Manufacturing We Will:
1. Update production process by weekly report with pictures
2. Send video and photos to customers during mould test
3. Confirm packaging with customer before mould delivery
4. One year warranty, all maintenance are free of charge during warranty
Part 4: FAQ For Customers
Q1. When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. Or please call us or send us email so that we will make the quotation soonest.
Q2. How long is the lead-time for mold?
A: It all depends on the mold’s size and complexity. Normally, the lead time is 25-35days. If the molds are very simple and with small size, we can work out within 15 days.
Q3. I have no 3D drawing, how should I start the new project?
A: You can supply us a sample, and we will help to finish the 3D drawing design.
Q4. Before shipment, how to make sure the products quality?
A: We will supply you a video for production process detail include process report, products size, structure and surface detail, packing detail and so on.

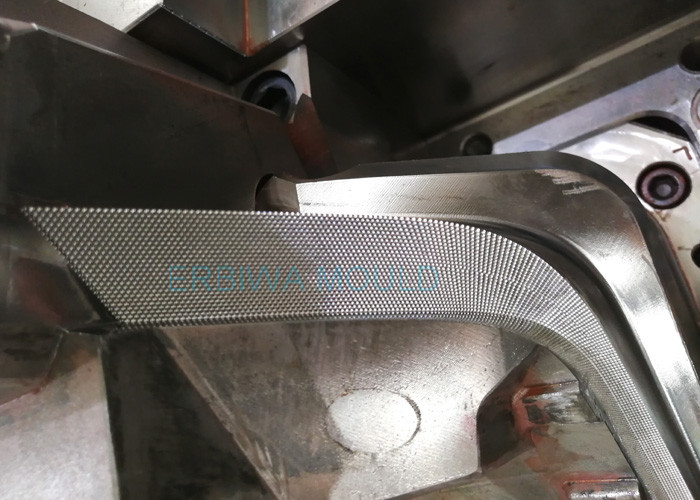

Part 5: The Injection Mould & Samples
